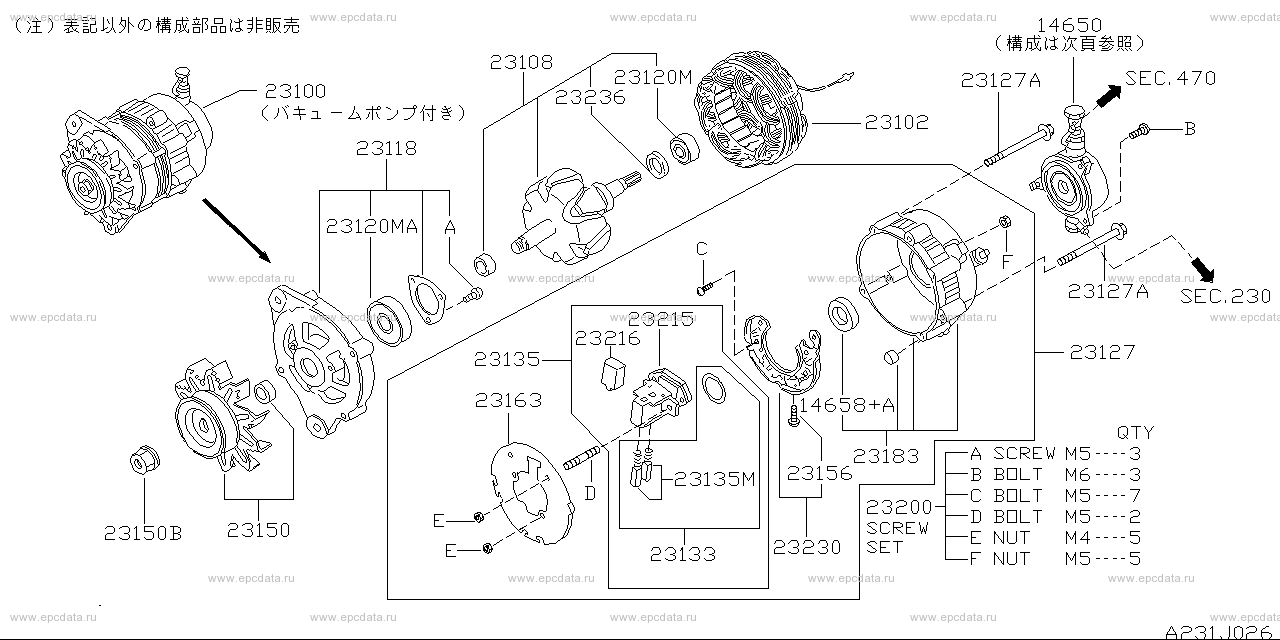

231 - alternator (engine) for Nissan Vanette Serena KVC23
| |||||||||||||||||||
| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T | 05.1994 - 01.1997 | バキュームポンプ 日立 |
| 14650 - pump assembly, vacuum 14651 - rotor 14652 - vane 14654 - housing assembly 14655 - seal,O ring 14658 - seal, oil 14660 - cover assembly 14675 - bolt assembly, connector 14680 - connector 14680+A - connector 14681 - packing 14681+A - packing 14681+B - packing 14683 - connector 14683C - packing 14685 - bolt, eye |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20T | 05.1994 - 01.1997 | オルタネーター 日立 |
| 14650 - pump assembly, vacuum 14658+A - seal, oil 23100 - alternator assembly 23102 - stator assembly 23108 - rotor assembly 23118 - cover assembly, front 23120M - bearing, ball 23120MA - bearing, ball 23127 - cover assembly, rear 23127A - bolt, through 23133 - holder assembly, brush 23135 - brush assembly 23135M - brush,F 23150 - pulley assembly 23150B - nut assembly, pulley 23156 - terminal assembly,B 23163 - guide, alternator fan 23183 - cover, rear 23200 - screw set 23215 - regulator assembly,IC 23216 - condenser 23230 - diode assembly 23236 - cover, brush |
| Applies for models | Manufacture period | Spec |
|---|---|---|
| CD20ET | 01.1997 - 01.1998 | オルタネーター 日立 |
| CD20ET | 01.1998 - ... | オルタネーター 日立 |
| 23100 - alternator assembly 23102 - stator assembly 23108 - rotor assembly 23118 - cover assembly, front 23120M - bearing, ball 23120MA - bearing, ball 23124 - rectifier assembly 23127 - cover assembly, rear 23150 - pulley assembly 23200 - screw set |
